Binary Tree

-
A tree is a hierarchical data structure which consists of a set of nodes. A tree is a graph with no cycles.

Binary Tree is a special type of tree, in which each node can only have a maximum of 2 children.

In Binary Tree each node consists of :

 1. Data
2. Pointer to left node
3. Pointer to right node
TREE TERMINOLOGY :

Root
- Node with no parent, only one in a tree

 Leaf
- Any node with no children

 Parent
- If a node is directly above node x, then it is parent of node x

 Child
- If a node is directly below node x, then it is child of node x

 Ancestor
- If a node is in the path from root to node x, then is ancestor of node x

 Descendant
- If a node y is ancestor of node x, then node x is descendant of node y

 Siblings
-Set of nodes that have the same parent node



A Binary Tree can be implemented in C++ as :
 #include <iostream>
 using namespace std;
 // Implementation of Binary Tree in C++
 struct tree{
      int data;
      struct tree * left;
      struct tree * right;
 };
 int main()
 {
      struct tree *root;
      struct tree A;
      struct tree B;
      struct tree C;
      root = &A;
      root->left = &B;
      root->right = &C;
      root->data = 10;
      B.data = 20;
      C.data = 30;
      cout<<A.data<<endl;     // 10
      cout<<root->left->data<<endl; // 20
      cout<<root->right->data<<endl; // 30
 }

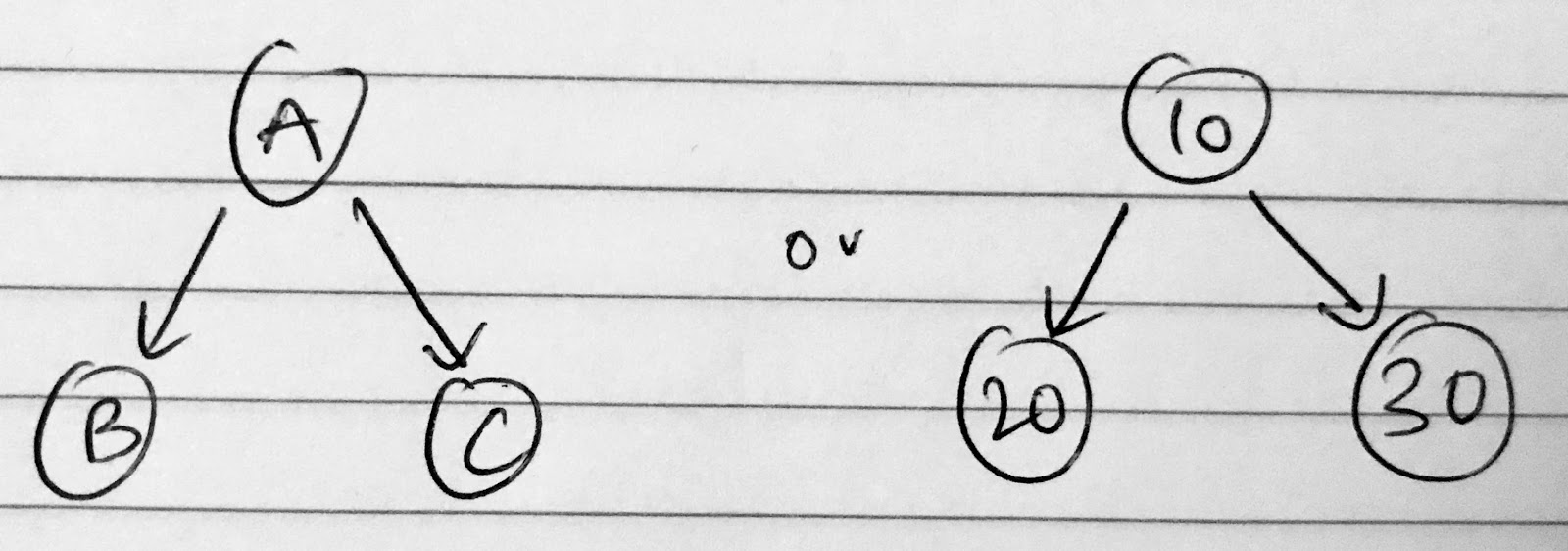

The binary tree implemented by the program above would look like :

Height of tree :

If the tree contains no nodes, its height is 0.
Otherwise, it 1 + height of taller subtree. [1 is for root and take max(left,right)]

 The height of the tree above is 2.

 Level of node :

 The level of node n is the number of nodes on the path from root to node n.

 For root, level is 1. For every other node it is 1 + level of its parent

 Some properties :

 1. Maximum number of nodes in a binary tree of height h is ((2^h)-1)
2. Maximum number of nodes at level I of a binary tree is (2^(I-1))
3. In binary tree, number of leaf nodes is always one more than nodes with two children.
